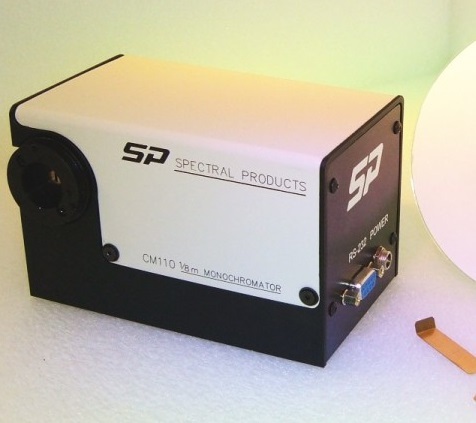

CM110 1/8m单色仪
实时迷你2 D激光雷达传感器
微扫描式高灵敏高分辨率热红外相机
实验室服务
太赫兹时域光谱仪工具箱THz Kit
元素分析仪
phasics真空环境兼容波前分析仪SID4-V
联系方式 |
产品系列
DK480 1/2m 单色仪
DK480是一个与软件结合的较好解决方案。三光栅塔台容易控制,电动控制狭缝宽度,和可供选择的快速的电动滤光轮。仪器可被设置为恒定的分辨率,自动修改狭缝宽度,补偿变化中的色散与波长,保持恒定的光谱带宽。坚固耐用,A级散热设计,SP的光栅驱动器使得可重复性和可靠性好,出厂前校准。
产品特点:
通过RS232 或者 IEEE-488连接任何电脑.
电动控制狭缝宽度.
三光栅塔台能对大范围波长进行扫描,分光.
厂家预装配单色仪和光谱仪.
直接扫描和连续光谱分辨 (CSR).
预配置SP滤波轮和开关.
应用范围:
荧光光谱
吸收光谱
探测器特性
薄膜测量等
产品参数:
Feature | Value |
Design: | Czerny-Turner, triple-grating turrets standard. |
Focal Length: | 480mm |
f/#: | 7.8 |
Reciprocal Dispersion: | 1.60nm/mm (with 1200 g/mm grating) |
Wavelength Drive: | Worm and wheel with microprocessor control and anti-backlash gearing. Bi-directional. Usable in positive or negative grating orders. |
Wavelength Precision and reproducibility: | 0.007nm (with 1200g/mm grating) |
Wavelength Accuracy: | ± 0.30nm standard (with 1200 g/mm grating) |
Scan Speed: | 1 to 1200nm/minute (with 1200g.mm grating) |
Stray Light: | < 0.01% at 220nm (Nal) |
Slits: | Unilateral, computer controlled, curved entrance and straight exit standard. Width - 10μm to 3000μm Height - 2mm to 20mm |
Max Resolution: | 0.03nm (with 1200 g/mm grating) |
Gratings: | One to three gratings (68 x 68mm standard, 68 x 84mm optional) must be purchased. See DK Gratings. |
Software: | Demonstration control program and LabView driver included. |
Power: | 100 - 240V, 50/60Hz, 60W 220/230/240V, 50/60Hz @ 0.5A optional. |
Interface: | RS232 standard |
Weight: | 45lbs |
Warranty: | One year |
Options: |
|
光栅选型表:
DK Series Standard Gratings, 68 x 68 mm
Part # | Ruling | Peak | Range (nm) | Peak %T |
(G/mm) | (nm) | |||
AG2400-00240-686 | 2400 | 240 | 180 - 680 | 70 |
AG1200-00200-686 | 1200 | 200 | 180 - 450 | 65 |
AG1200-00250-686 | 1200 | 250 | 180 - 460 | 70 |
AG1200-00300-686 | 1200 | 300 | 200 - 750 | 72 |
AG1200-00500-686 | 1200 | 500 | 330 - 1000 | 83 |
AG1200-00600-686 | 1200 | 600 | 400 - 1500 | 80 |
AG1200-00750-686 | 1200 | 750 | 480 - 1500 | 85 |
AG1200-01000-686 | 1200 | 1000 | 550-1500 | 75 |
AG0600-00500-686 | 600 | 500 | 350 - 1300 | 80 |
AG0600-01250-686 | 600 | 1200 | 800 - 3000 | 85 |
AG0600-01600-686 | 600 | 1600 | 950 - 3000 | 93 |
AG0300-00500-686 | 300 | 500 | 310 - 1100 | 80 |
AG0300-02000-686 | 300 | 2000 | 1200 - 4000 | 88 |
AG0300-02500-686 | 300 | 2500 | 1500 - 6000 | 88 |
AG0300-03000-686 | 300 | 3000 | 1800 - 6000 | 80 |
AG0150-00500-686 | 150 | 500 | 320 - 980 | 72 |
AG0150-04000-686 | 150 | 4000 | 2500 - 9000 | 93 |
AG0075-08000-686 | 75 | 8000 | 5000 - 15000 | 82 |
AG0050-00600-686 | 50 | 600 | 400 - 1200 | 78 |
AG0050-12000-686 | 50 | 12000 | 7500 - 20000 | 82 |
NOTE: Ruled gratings blazed at other wavelengths and holographic gratings are available on request.
